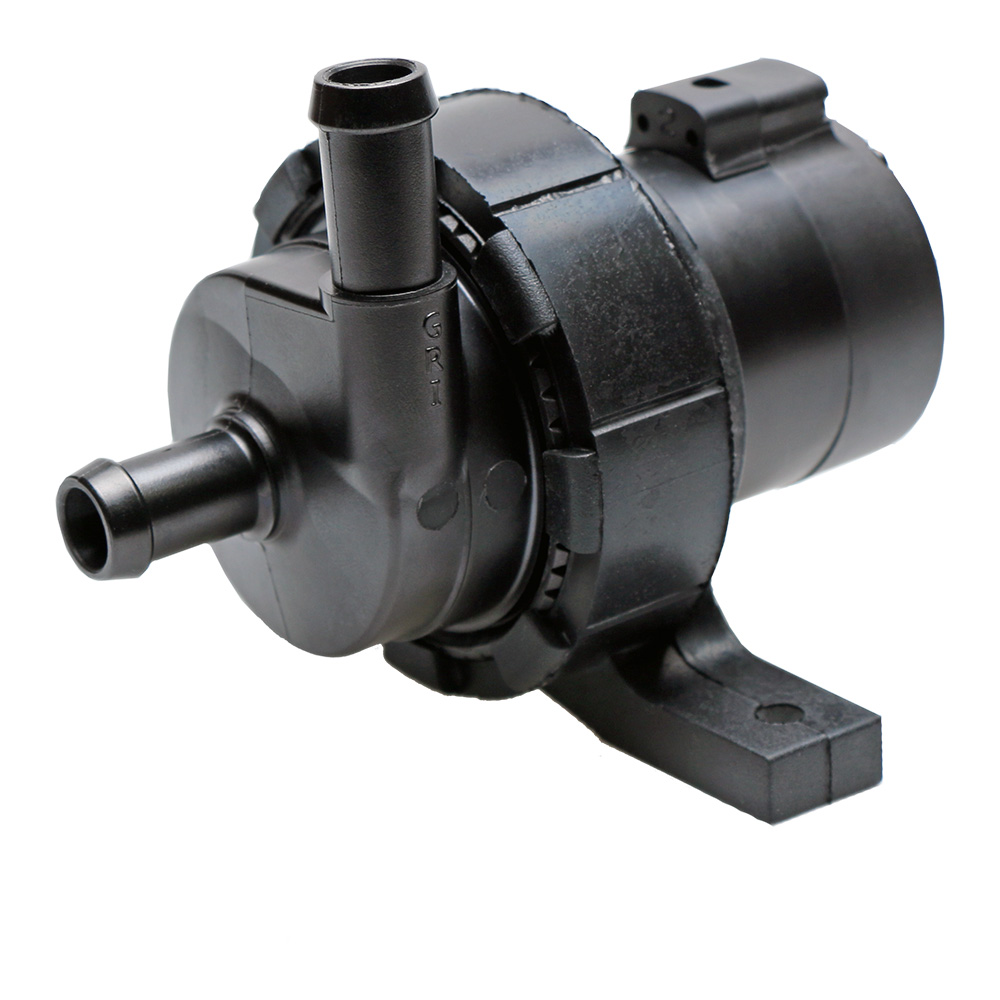

INTG3

Integrated Brushless DC Magnetic Drive Pumps

Product Overview

Designed for the circulation and transfer of fluids, GRI’s Integrity Series Pumps offer a flexible and robust solution to OEM applications.

Constructed with a proprietary blend of PPS, the INTG3 is compatible with a wide variety of fluids.  By manufacturing the motors and the majority of the pump’s components in-house,

GRI has the flexibility to precisely configure an Integrity Series pump to meet an OEM’s specific flow and pressure requirements.

Equipped with an integrated brushless DC variable speed motor, with voltage ranges from 12 volts to 24, these sealless, motor integrated centrifugal pumps incorporate the components into a compact, lightweight design. Fewer parts promote long life, quiet operation, and low power consumption.

The INTG3, with its small footprint and weighing in at less than a pound, offers a powerful performance with a flow range from approximately 2 gallons per minute (or 7.5 liters) up to a maximum of just over 8 gallons per minute (or 30 liters).

Available OEM options include a variety of suction and discharge port configurations and control options to best fit an OEMs application. The supply voltage can directly control the pump performance. Performance can also be controlled by an available analog 0-5 volt DC input as well as a PWM digital signal input. Additionally, a tachometer option is available to measure pump speed.

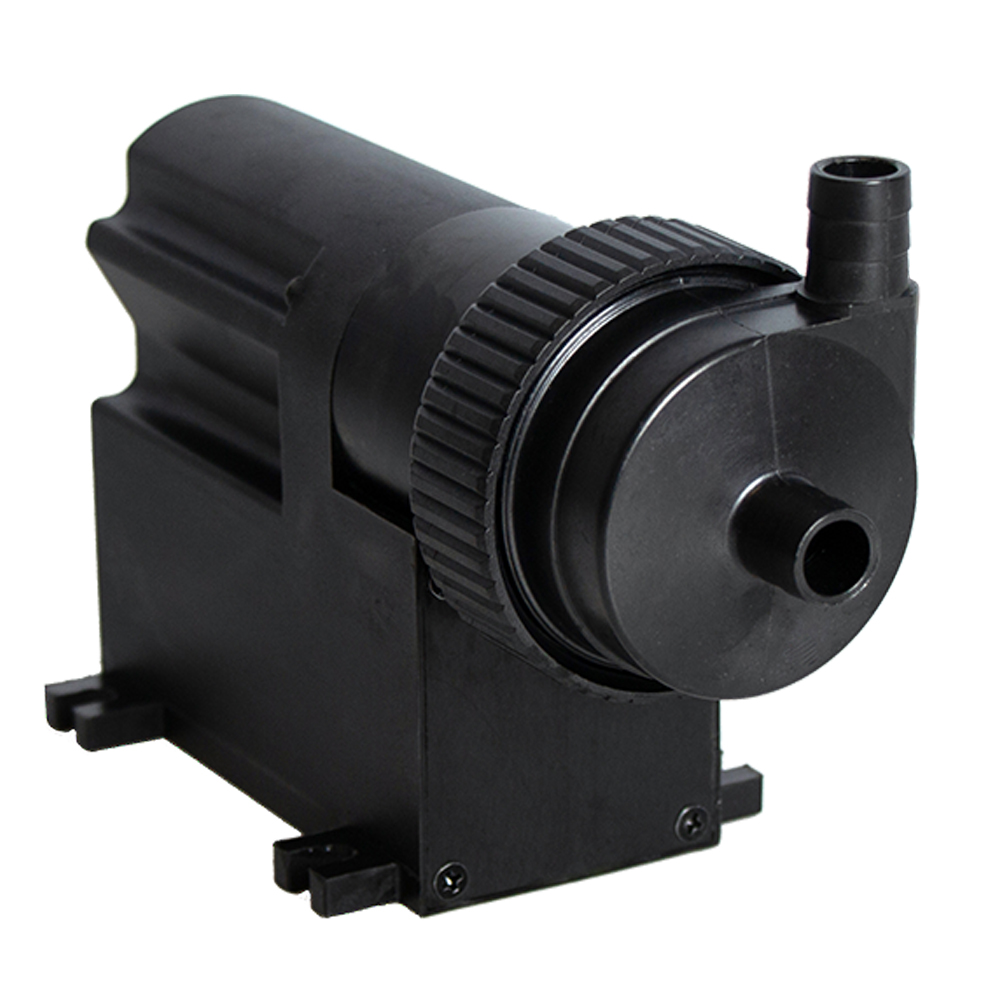

For AC applications, with OEM quantities, a 110/220 VAC option, with auto sensing technology, is available.

GRI collaborates with OEM engineers who are unable to fulfill their unique pump specifications with an off-the-shelf solution and require a custom-engineered pump specific to their application.

Please click the "Pump Overview & Data Sheet" button above for a printable PDF which includes a performance curve, material specifications, and pump dimensions.

Click here to see additional Integrity Series Pumps.

Contact Us to Customize
data sheet
Pump Overview &
Data Sheet

Product Details

Market Advantages

  • Designed for OEM customization: Production able to electronically throttle motor speed to customer’s specific flow and pressure requirements.
  • Brushless DC: 12-24 VDC
  • Magnetically driven: Seal-less, leak-free, motor is contained away from the fluid
  • Compact, lightweight design
  • Low power consumption
  • Quiet operation
  • Long life
  • Multiple intake/discharge configurations
  • Multiple OEM options

Typical OEM Applications include, but are not limited to:

  • Fluid circulation/recirculation devices
  • Server & Electronics Cooling
  • Medical
  • Chillers and coolers, coolant
  • Laser Systems
  • Hydronic Systems
  • Recreational Vehicles & Public Transit
  • Marine
  • Fuel Cells
  • Solar thermal heating and cooling
  • Beverage Dispensers



  • Motor: Integrated, Brushless DC
  • Supply Voltage:
  • Maximum System Pressure: 75 psi.
  • Maximum Flow: 8.85 GPM; 33.5 LPM.
  • Maximum Head: 37.0 feet; 16.0 PSI.
  • Maximum Fluid Temperature: See Fluid Temperature tab.
  • Weight: .8 lbs (363 grams).
  • Certifications: Contact GRI for details.
    • RoHS/REACH: Many GRI pumps are RoHS & REACH compliant. Contact GRI for declarations by specific model numbers.
    • Optional Agency Approvals:
      • UL778: Motor-operated Water Pumps
      • NSF372: Lead Content
    • IP (Ingress Protection):
      • IP68: No ingress of dust, protection against continuous water immersion.
      • Upon request only.
      • Minimum quantities may be required.

Prior to Startup - Important Information

  • Pump Body: PPS
  • Housing: PPS
  • Impeller: PPS
  • Impeller Shaft: Ceramic
  • Static O-Rings: FKM, EPDM

Integrity Series Maximum Fluid Rating Chart

Various factors influence the recommended maximum temperature rating. These factors play a role in determining the pump’s life and applied warranties. In some applications, a higher maximum fluid temperature rating may be warranted.

  • Factors influencing maximum temperature rating include, but are not limited to:
  • Starting temperature of fluid in system
  • Ambient Temperature
  • Required performance, application’s specifications
  • Run time

GRI collaborates with OEM engineers who are unable to fulfill their unique pump specifications with an off-the-shelf solution and require a custom-engineered pump specific to their application.



OEM Options

Model Specifications

GRI specializes in the custom design and manufacturing of fluid pumps for the OEM market. The chart below is a general overview of GRI's INTG3 Series Pumps. If you do not find a pump that meets your exact requirements, our dedicated Pump Team will work with you to create a solution specific to your application.

Model Numbers Voltage Speed Control Lead Wires

Max. Flow

GPM (LPM)

Max. Head

Feet (PSI)

 Connections Inlet/Outlet (Inches) O-Ring Material
INTG3-550, 551 12-24 VDC Direct

2 wires

(+), (-)

 8.85 (33.5) 32.00 (13.9) 3/4 MHB

EPDM,

FKM
INTG3-552, 553 24 VDC Analog (0-5v Nominal)

3 wires

(+), (-), Speed Control

 8.85 (33.5) 32.00 (13.9) 3/4 MHB

EPDM,

FKM
INTG3-560, 561 12-24 VDC Direct

2 wires

(+), (-)

 6.70 (25.4) 37.00 (16.00) 1/2 MHB

EPDM,

FKM
INTG3-562, 563 24 VDC Analog (0-5v Nominal)

3 wires

(+), (-), Speed Control

 6.70 (25.4) 37.00 (16.00) 1/2 MHB

EPDM,

FKM
INTG3-564, 565 12-24 VDC Direct

2 wires

(+), (-)

 6.70 (25.4) 37.00 (16.00) 3/8 MPT

EPDM,

FKM
INTG3-566, 567 24 VDC Analog (0-5v Nominal)

3 wires

(+), (-), Speed Control

 6.70 (25.4) 37.00 (16.00) 3/8 MPT

EPDM,

FKM
INTG3-860, 861 AC

115 VAC

230 VAC

 Direct

2 wires

(Neutral), (Line)

 8.00 (30.5) 45.00 (19.5) 1/2 MHB

EPDM,

FKM



Connectors: MHB = Male Hose Barb; MPT = Male Pipe Thread
O-Ring Material: EPDM = Ethylene Propylene Diene Monomer, FKM = Fluoroelastomer.
